선형 시불변 시스템의 연속 상태 공간 모델의 이산화

노션에다 정리한걸 그대로 가져와봤는데 안되서 html을 긁어왔더니 되네요.. 노션에서 작성된 형식을 그대로 옮기는게 꽤 불편하네요

Discretize_Continuous_State_Space_Model_of_LTI_System.pdf

0.09MB

Continuous State Space Model of Linear Time invariant System

$$\begin{gathered} \dot{x}=Ax(t)+Bu(t) \\ y(t)=Cx(t)+Du(t),t\ge 0 \end{gathered}$$, (1)



The matrix exponential function as

$\frac{d}{dt}{e}^{At}=A{e}^{At}=e^{At}A$, (2)



Multiplying both sides of (1) by

$e^{-At}$, we obtain(3)

$e^{-At}\dot{x}(t)=e^{-At}Ax(t)+e^{-At}Bu(t)$, (3)



Substituting (2) into (3)

$e^{-At}\frac{d}{dt}x(t)=-\frac{d}{dt}{e}^{-At}x(t)+e^{-At}Bu(t)$

$\to \frac{d}{dt}[e^{-At}x(t)]=e^{-At}Bu(t)$, (4)



Integrating the result of multiplying

$dt$ both side of (4)

$e^{-At}x(t){|}_0^t=e^{-At}x(t)-x(0)={\int }_0^t{e}^{-A\tau }Bu(\tau )d\tau$, (5)



Rewriting the equation (5), we get the solution of the state-space eq of LTI system.

$x(t)=e^{At}x(0)+{\int }_0^t{e}^{A(t-\tau )}Bu(\tau )d\tau$, (6)



Discretize the continuous state space model

In an analog control system, the control input is updated continuously, while in a digital control system, it is held constant within each sampling period.

To accurately represent this behavior in a system model, discretization must be applied. we use the Zero-Order-Hold(ZOH) method in this contents.

$x(t)=e^{A(t-t_0)}x(t_0)+{\int }_{t_0}^t{e}^{A(t-\tau )}Bu(\tau )d\tau$, (1)



To transition to a discrete-time representation, we replace the continuous-time variable

$t,t_0$ with the discrete-time variable

$T(k+1),Tk$

$t=T(k+1),t_0=Tk,T:samplingtime$



Rewriting equation (1) under the assumption that the input

$u$ remained during sampling time. so input

$u$ is constant.

$x(T(k+1))=e^{AT}x(t_0)+{\int }_{Tk}^{T(k+1)}{e}^{A(T(k+1)-\tau )}Bu(k)d\tau$ (2)



For simplicity, introduce a change of variable

$\sigma =T(k+1)-\tau$



Thus, by substituting

$d\tau =-d\sigma$, equation (2) transforms into (3)

$x(T(k+1))=e^{AT}x(t_0)+{\int }_T^0{e}^{A\sigma }Bu(\tau )(-d\sigma )$ (3)



Rearranging (3), we get the final form in continuous-time

$x(T(k+1))=e^{AT}x(t_0)+{\int }_0^T{e}^{A\sigma }d\sigma Bu(k)$ (4)



$$\begin{gathered} A_d=e^{AT}=I+AT+\frac{(AT{)}^2}{2!}... \\ {B}_d={\int }_0^T{e}^{A\sigma }d\sigma B=A^{-}1[e^{AT}-I]B=T+\frac{A{T}^2}{2!}+\frac{A^2{T}^3}{3!}... \end{gathered}$$



We can represent the eq (4) in discrete-time.

→

$x(k+1)=A_{d}x(k)+B_{d}u(k)$



Given these following system, we compare how well the continuous and discrete models describe GT. GT is continuous model use very small dt to describe GT.

Assume GT is continuous model that dt is 0.000001.

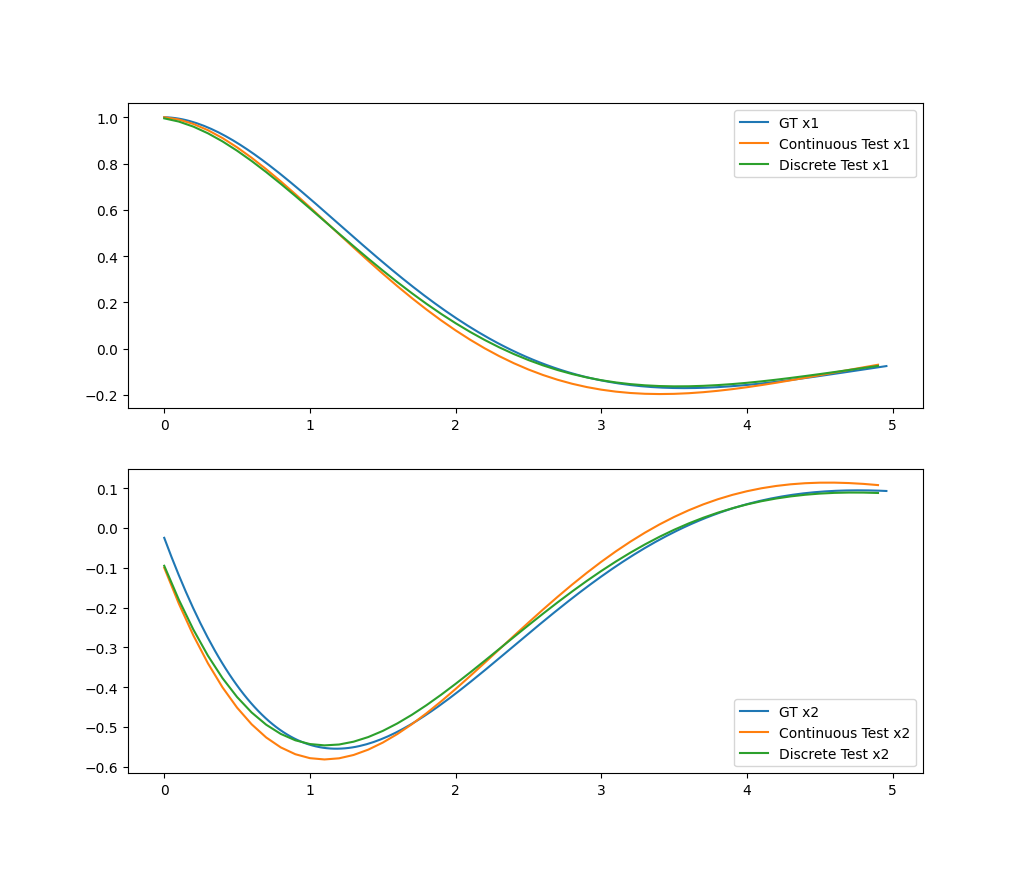

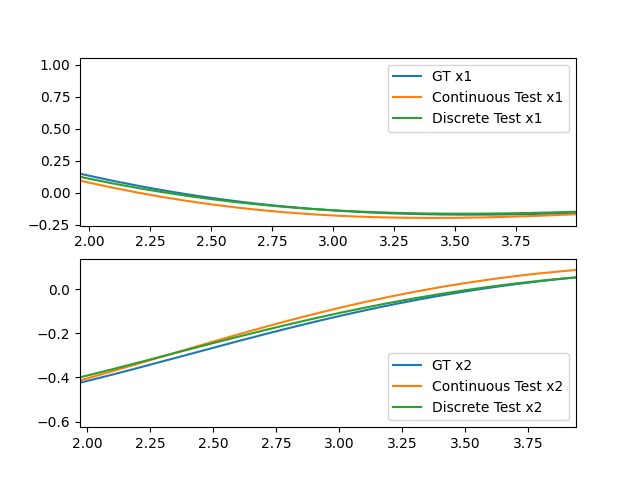

The test where dt is 0.1sec was simulated for 5 sec. and we plot simple results of three cases (GT, continuous model, discrete model)
